HOUFEK Deburring and Wide Belt Grinding Machines

HOUFEK

MAXX 4 Series ( Dry type 400-800-1100-1300mm width )

MAXX 6W Series ( Dry and wet type 400-800-1100-1300-1500mm width )

HOUFEK MAXX 4 Series ( Dry type 400-800-1100-1300mm width )

Original construction of the series Maxx 4 has been developed for customers who require simplicity, reliability and quality for all technologies of sanding. Metal sanding is very easy task for this machine.

Maxx 4 excels in its robustness, reliability and variable combination of sanding units. Main advantage of wide belt sanders Maxx is satisfaction and reliability of thousands of customers proven worldwide.

Wide belt sanders Maxx 4 series are designed for sanding (machining) workpieces from metal. During machining sanded materials must not sparkle or significantly change their features and shape due to increased temperature.

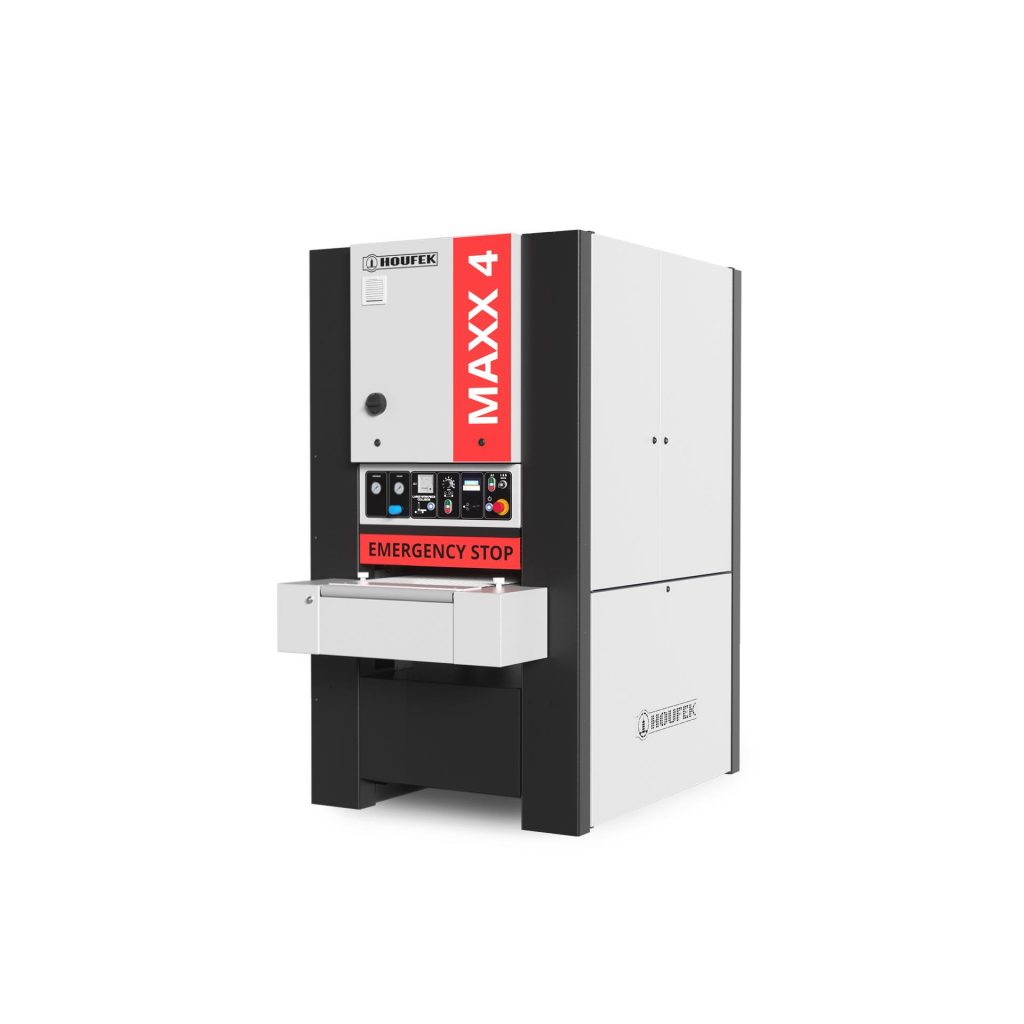

MAXX 4 – 400 Wide Belt Sander

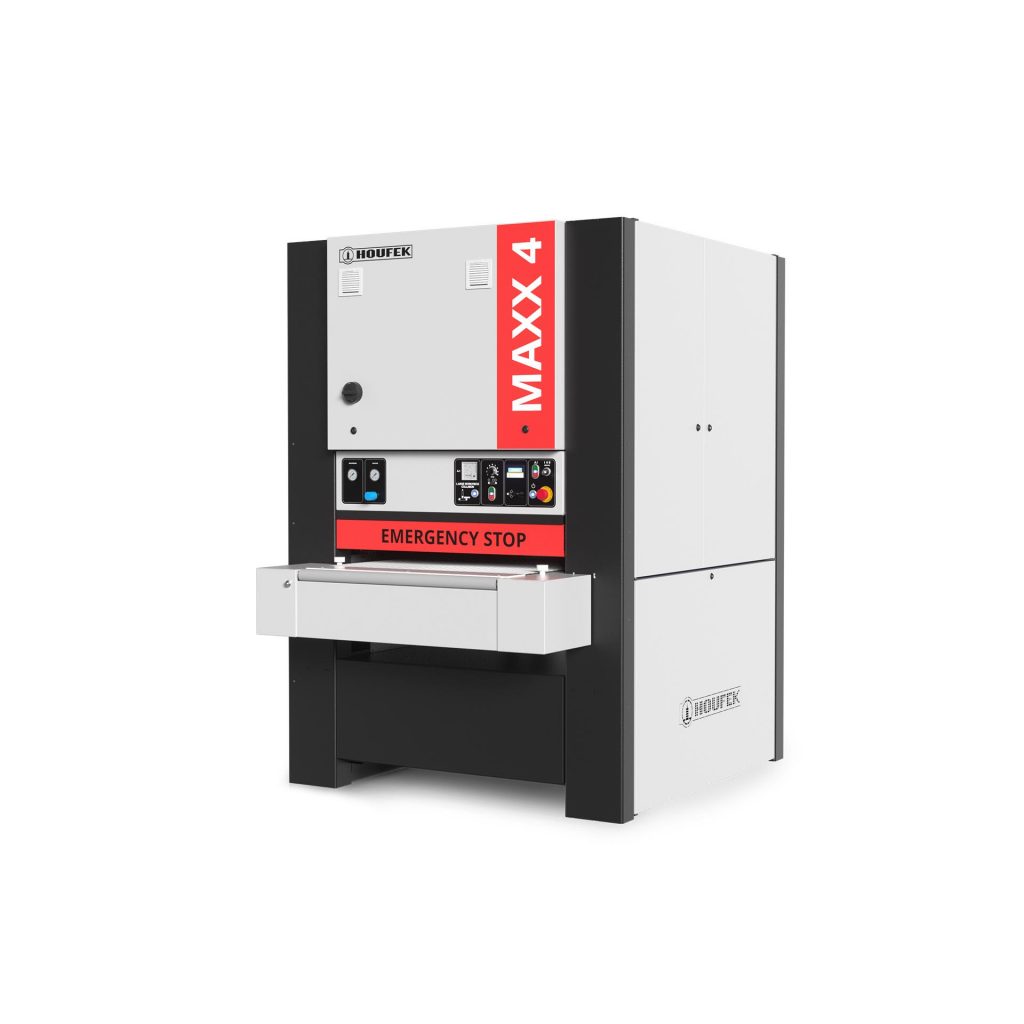

MAXX 4 – 800 Wide Belt Sander

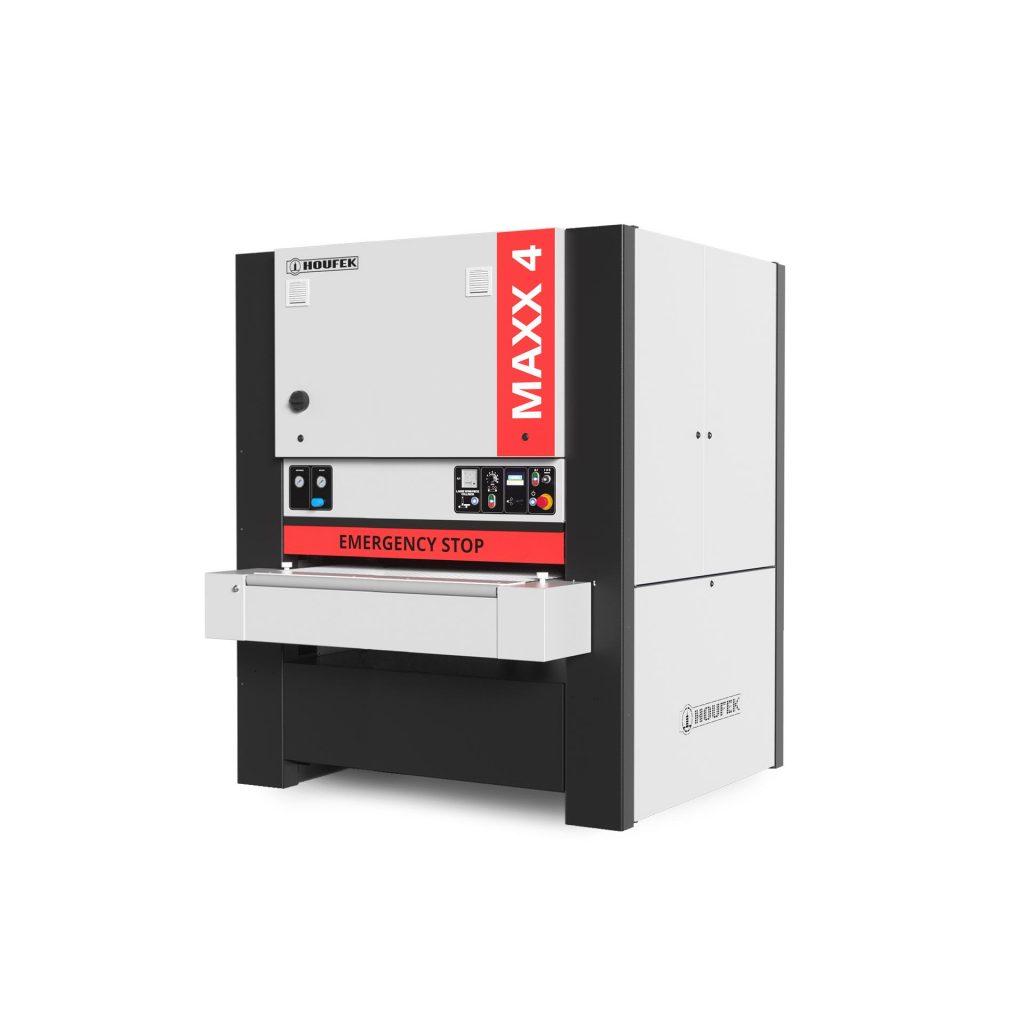

MAXX 4 – 1100 Wide Belt Sander

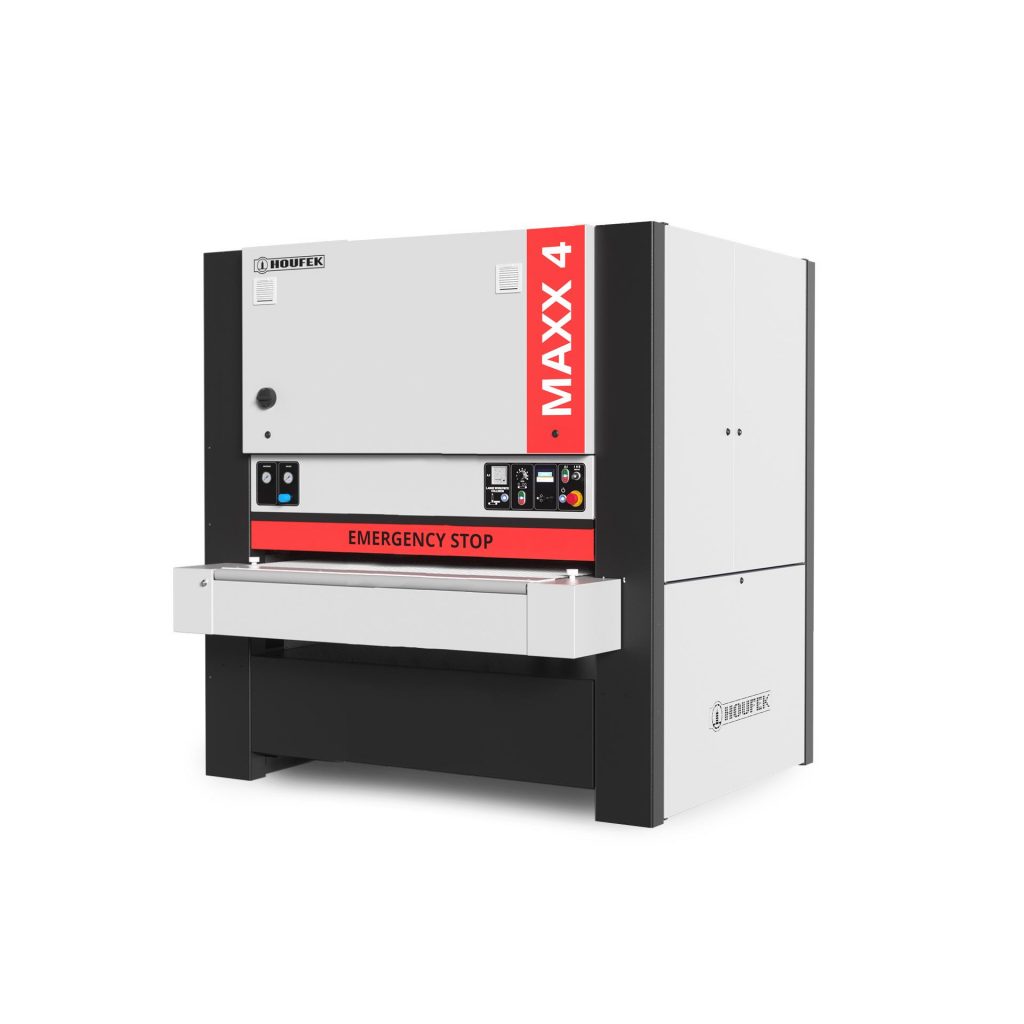

MAXX 4 – 1300 Wide Belt Sander

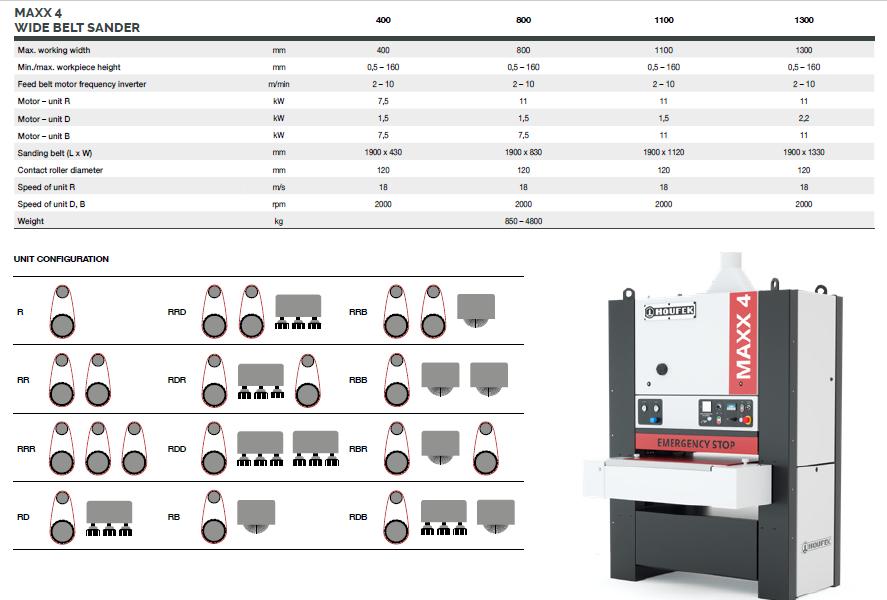

MAXX 4 Unit Configuration Table

STANDART FEATURES

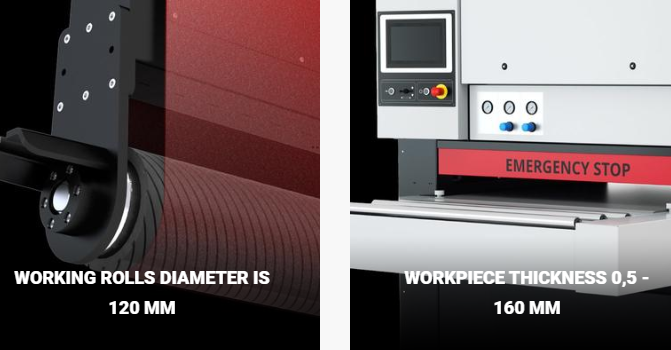

Rubbered roller D=120 mm, 60 Sh
Motorized table height adjustment
Sanding belt speed 18 m/s
Min/Max. workpiece height 0,5/160 mm
Sanding belt dimensions 430×1900 mm, 830×1900 mm, 1120×1900 mm, 1330×1900 mm
Automatic star/delta switch
Feed belt motor frequency inverter- speed 2-10 m/min
Ammeter for motor of sanding unit
Optical sensor control of abrasive belt oscillation
Electronic measuring of table position with digital display
Rubber pressure rollers with covered quides
Main motor pneumatic disc brake
Pressure switch 3,5-4,0 bar
Sanding belt
CE certification

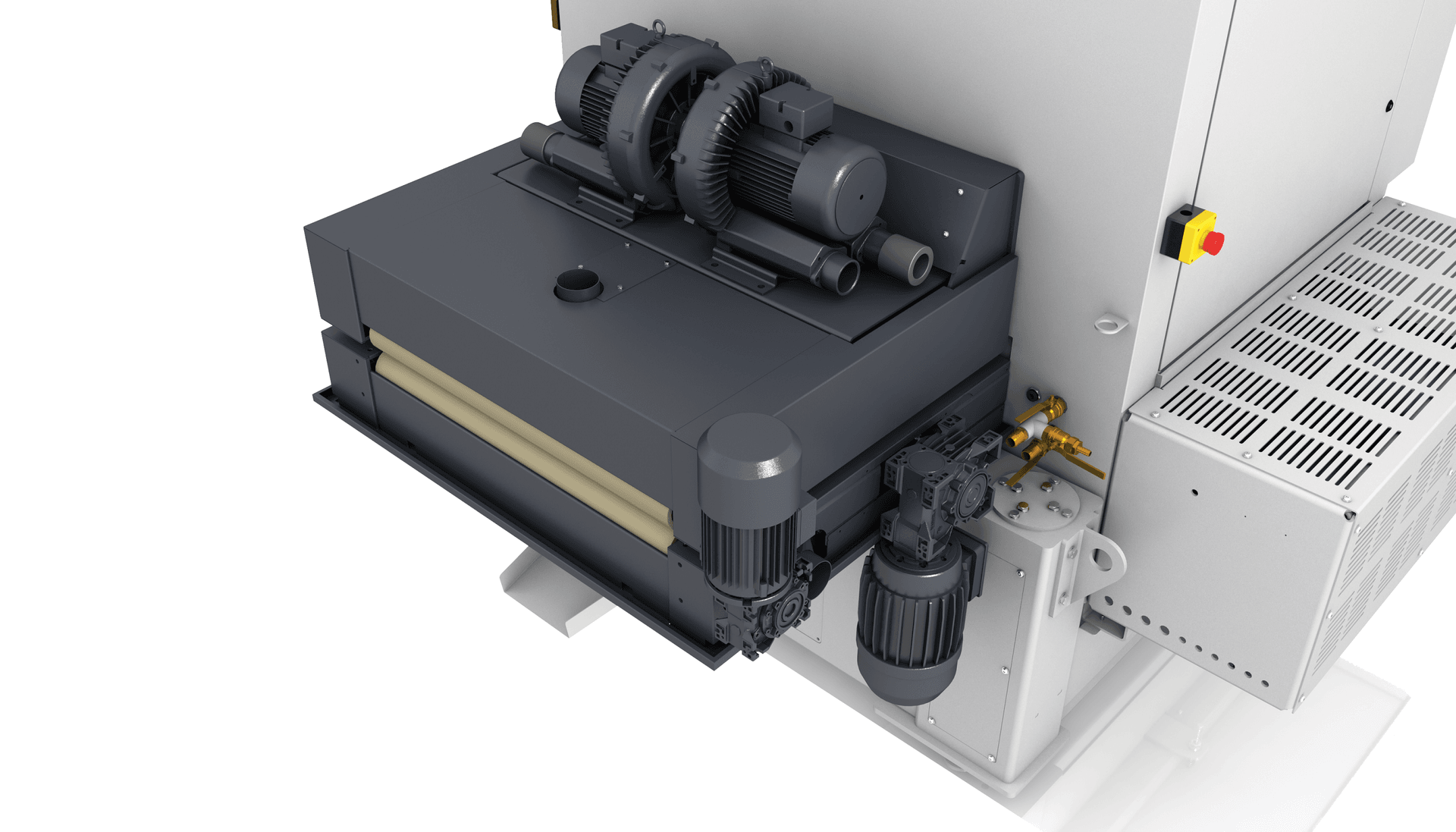

OPTIONAL FEATURES

Motor 11 kW (15 HP) for width 400 mm
Motor 15 kW (20 HP) for width 800, 1100, 1300 mm
Two speed motor for table height adjustment
Main motor frequency inverter- speed 10-35 m/s
NC machine control
Colour Touchscreen 10,1“
Elestronic adjustment of contact roller position by stepper motor
Rubbered roller D=120 mm, 30 Sh, 45 Sh, 90 Sh
Rubbered roller D=160 mm, 30 Sh, 45 Sh, 90 Sh
Timed air cleaning device for sanding belt-1 pc automatic feed belt tracking,

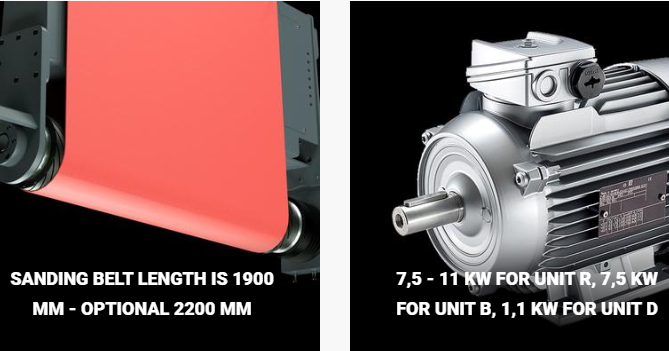

Sanding belt 2200 mm (machine height + 200 mm)
Table lift 220 mm
Electronical limitation of maximum material removal
Extension table with rollers- front and rear 400 mm
Extension table with flat plate-front and rear 500 mm
Vacuum table
Magnetic table width 150 mm, 300 mm
Vacuum pump for width 400 mm, 800 mm, 1100 mm, 1300 mm
Flat feeding belt
Module for feeding belt cleaning

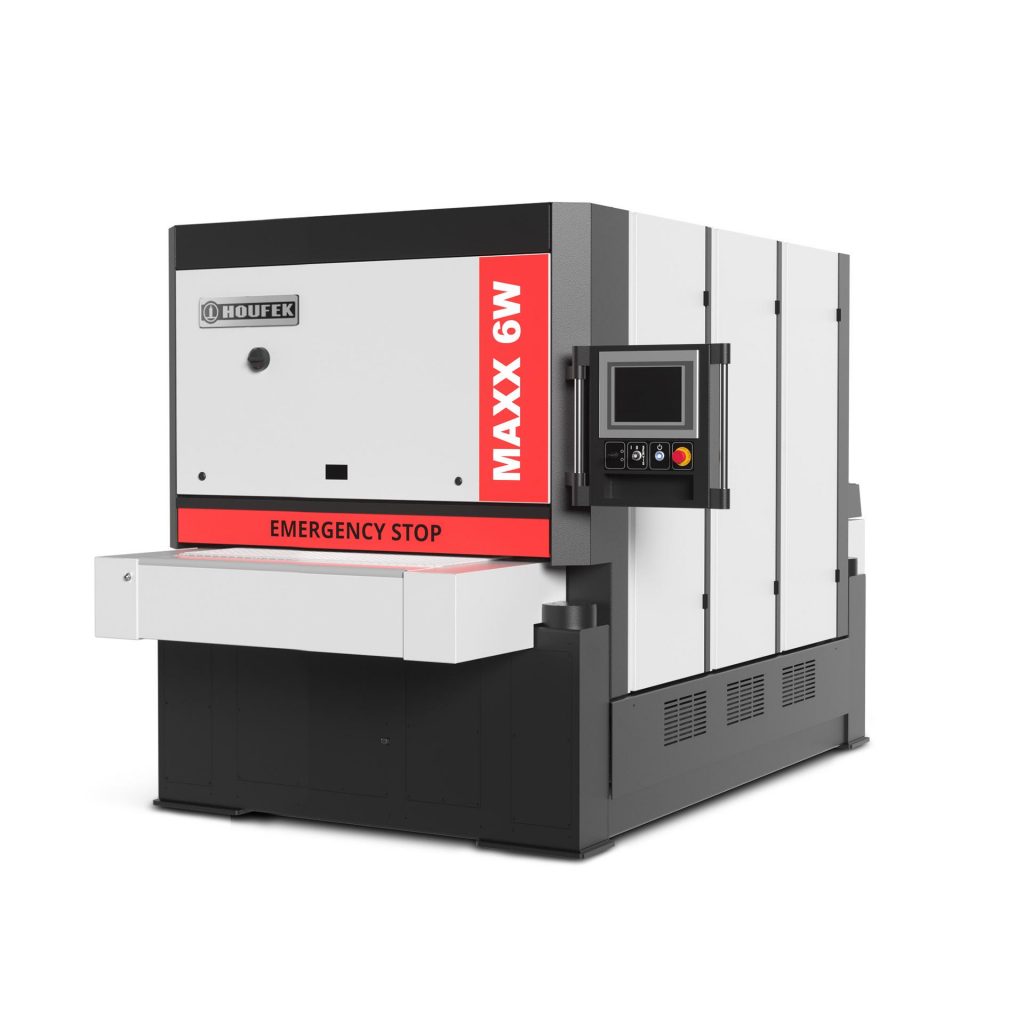

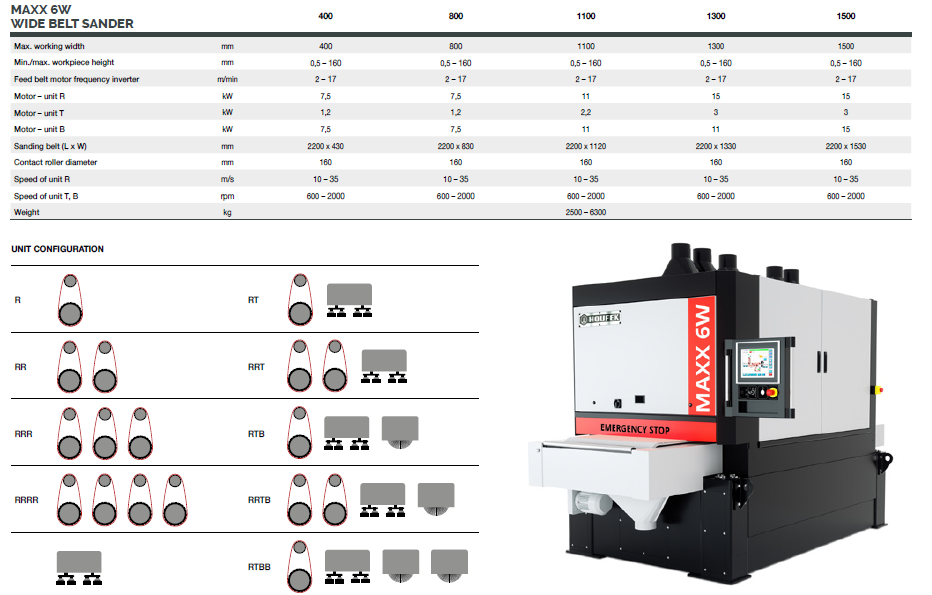

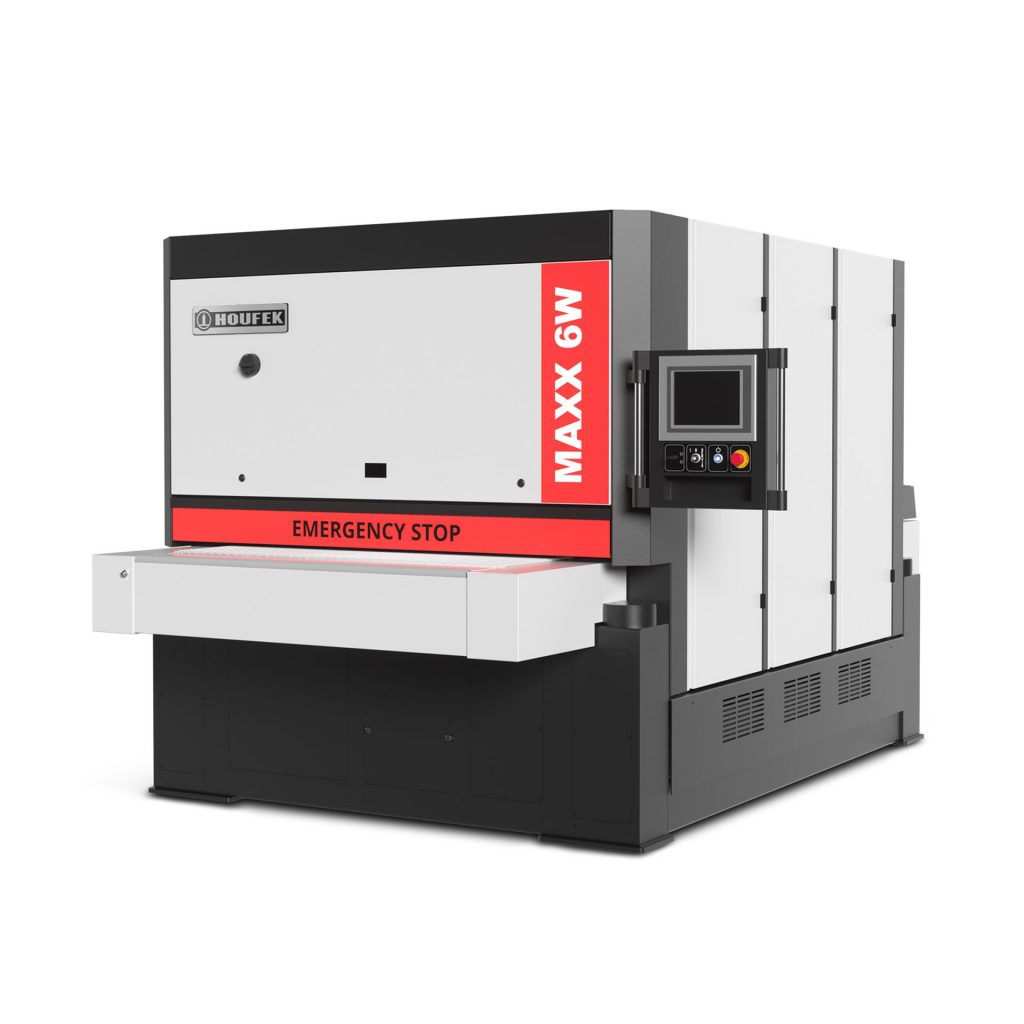

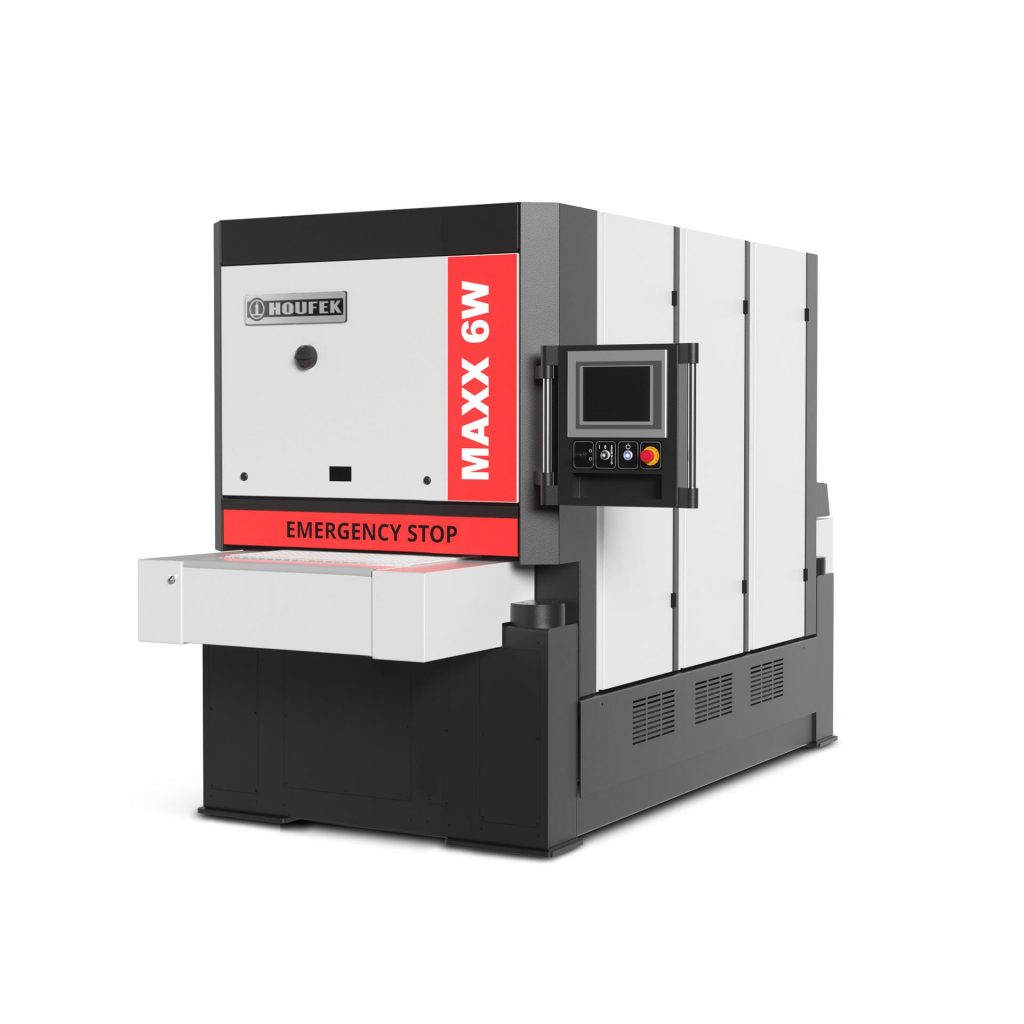

HOUFEK MAXX 6W Series ( Dry and wet type 400-800-1100-1300-1500mm width )

Wide belt sander Maxx 6W is with its construction and possibilities designed for demanding sanding of metals.

Fixed table height allows it to use the sander in technological production lines. Achievable high quality of the sanded surfaces and the degree of automatization of sanding processes put this machine in the upper middle class.

Maxx 6W series is produced in to versions for dry and wet sanding

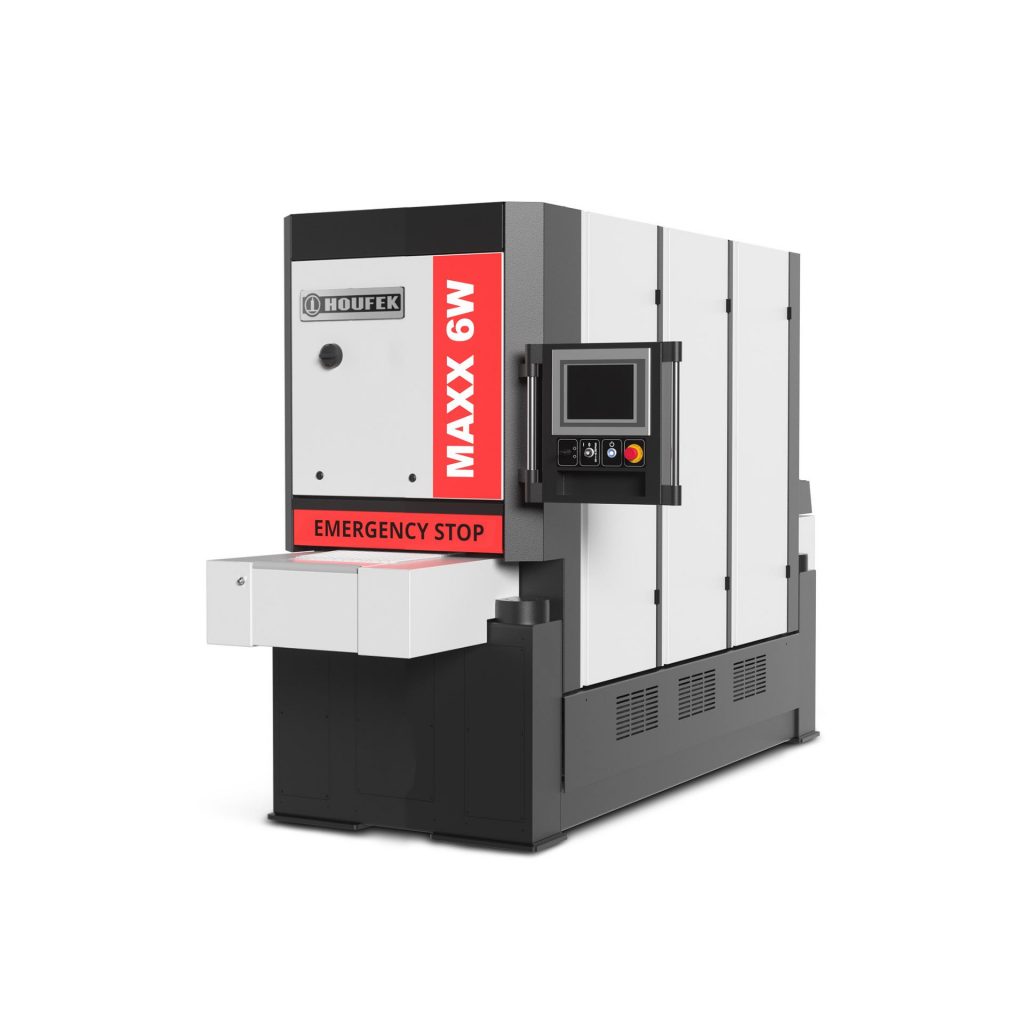

MAXX 6W – 400 Wide Belt Sander
